Author Topic: Help with handle/rest  (Read 3350 times)

0 Members and 1 Guest are viewing this topic.

Offline IndianKid

  • Member
  • Posts: 55
Help with handle/rest
« on: January 15, 2015, 06:37:59 pm »
Ok, I'm so bad at art... there hasn't been anything I couldn't build
If someone already drew it lol...

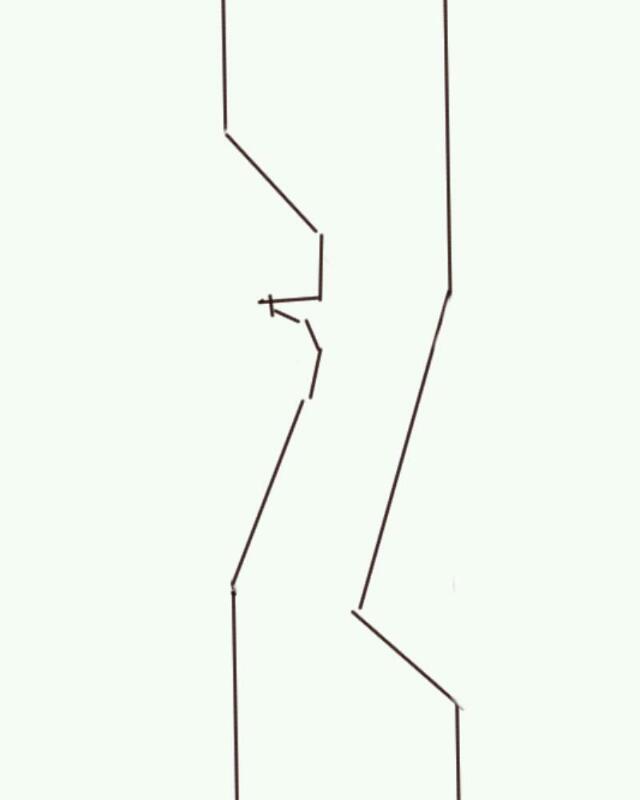

A few weeks/months back I saw a ton of images / drawings
of bow designs and I remember one had the handle like start from
the lower limb left side towards the upper limb right side...

I'm trying to draw what I remember but the devil is in the details
and proportions...

Anyone know where I might find images or drawings like this ?
Logged

Offline huisme

  • Member
  • Posts: 1,036
  • I'm Marc, but not that Marc.
Re: Help with handle/rest
« Reply #1 on: January 15, 2015, 06:55:08 pm »
Logged
50#@26"
Black locust. Black locust everywhere.
Mollegabets all day long.
Might as well make them short, save some wood to keep warm.

Offline osage outlaw

  • Member
  • Posts: 11,962
Re: Help with handle/rest
« Reply #2 on: January 15, 2015, 07:09:22 pm »
Logged
I started out with nothin' and I still got most of it left

Offline Knoll

  • Member
  • Posts: 3,016
  • Mikey
Re: Help with handle/rest
« Reply #3 on: January 15, 2015, 08:11:52 pm »
Thanks, Indian, for asking the question.  Otherwise I may never have seen the beauties Hu & Outlaw pointed us to.
ABSOLUTELY AMAZING & BEAUTIFUL!
Logged
... alone in distant woods or fields, in unpretending sproutlands or pastures tracked by rabbits, even in a bleak and, to most, cheerless day .... .  I suppose that this value, in my case, is equivalent to what others get by churchgoing & prayer.  Hank Thoreau, 1857

Offline SLIMBOB

  • Member
  • Posts: 3,759
  • Deplorable Slim
Re: Help with handle/rest
« Reply #4 on: January 15, 2015, 08:27:42 pm »
Less pronounced but the same idea.  This one was naturally shaped this way as opposed to my building it  that way.  Pales in comparison to Simons.  In a BIG way.
Logged
Liberty, In God We Trust, E Pluribus Unum.  Distinctly American Values.

Offline Knoll

  • Member
  • Posts: 3,016
  • Mikey
Re: Help with handle/rest
« Reply #5 on: January 15, 2015, 10:08:45 pm »
Elegant, Slim.  Quite elegant!
Logged
... alone in distant woods or fields, in unpretending sproutlands or pastures tracked by rabbits, even in a bleak and, to most, cheerless day .... .  I suppose that this value, in my case, is equivalent to what others get by churchgoing & prayer.  Hank Thoreau, 1857

Offline IndianKid

  • Member
  • Posts: 55
Re: Help with handle/rest
« Reply #6 on: January 15, 2015, 10:23:30 pm »
These are real nice !
I almost thought it was on a a holmegaard, its driving me nuts...

But I had an ah haa moment, since I dont want to build a bunch of handles out of wood
I though may be use modeling clay ! If that doesn't work, foam will be next...

SO, off to the craft store lol...
Logged

Offline huisme

  • Member
  • Posts: 1,036
  • I'm Marc, but not that Marc.
Re: Help with handle/rest
« Reply #7 on: January 15, 2015, 11:58:45 pm »
Clay or foam on what exactly? If the handle bends the dry clay is going to shatter, where the foam would be a decent built-up handle much like built cork.
Logged
50#@26"
Black locust. Black locust everywhere.
Mollegabets all day long.
Might as well make them short, save some wood to keep warm.

Offline IndianKid

  • Member
  • Posts: 55
Re: Help with handle/rest
« Reply #8 on: January 16, 2015, 09:31:42 am »
No, not on an actual bow... get a block of clay, mold it
to the shape of a comfortable doable handle, then cut, carve
and sand the bow handle to match ...
Logged

Offline PatM

  • Member
  • Posts: 6,737
Re: Help with handle/rest
« Reply #9 on: January 16, 2015, 10:16:20 am »
Not much point in doing it twice with dissimilar materials.
Logged

Offline IndianKid

  • Member
  • Posts: 55
Re: Help with handle/rest
« Reply #10 on: January 16, 2015, 02:03:39 pm »
May be not for you, but since this will be only the second handle
I have made, I figured it would be a simple task to get a comfortable model
usiing something like clay. Once I know what I like it is a simple
matter of carving wood to match.

And, figured I'd throw out that it is a common practice in many manufacturing
processes. So, again, there may not be a point for you guys with
a ton of experience but for a new guy like me it helps.

May be others have better methods, better materials to work with, I'd be
curious to see ....

Logged
